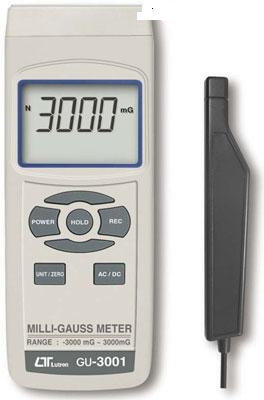

高斯计GU3001地磁场测试仪GU-3001地磁检测仪簡介
-
測量範圍： -3000 毫高斯 ~ +3000m 毫高斯
-300 u ~ +300u Tesla
-
直流(DC) 及交流(AC) 毫高斯測量
-
磁性材料之磁力測量
-
具有 N/S 極性指示功能(DC)
-
讀值鎖定及記錄測量中之最大 / 最小值
-
RS-232 / USB 連接介面(軟體選購)
-
Size：173 X 68 X 42mm
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm dual function LCD display.
測量單位 (Measurement Unit)
- mG : milligauss
- uT : micro Tesla
測量範圍 (Measurement Range)
- - 3,000 mG to 3,000 mG.
- - 300 uT to 300 uT.
頻率反應 (Frequency Response)
- DC
- AC : 40 Hz to 10 KHz
解析度 (Resolution)
- 0.1 mG : - 199.9 mG to 199.9 mG.
- 1 mG : ≧ 200 mG, ≦ -200 mG
- 0.01 uT : - 19.99 uT to 19.99 uT.
- 0. 1 uT : ≧ 20.0 uT, ≦ -20.0 uT.
精確度 (Accuracy)
- ± ( 2 % + 2 mG )
- * -1,000 mG to 1,000 mG
- * -100.0 uT to 100.0 uT
電場方向 (Field Direction)
- Uniaxial.
讀值鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫(Memory Recall)
- Maximum & Minimum value.
顯示取樣時間 (Display Sampling Time)
- Approx. 1 second.
電源關閉 (Power off)
- Manual off by push button or Auto shut off to save battery life.
資料輸出 (Data Output)
- RS 232/USB PC serial interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temperature)
-
0 to 50 ℃.
操作溼度 (Operating Humidity)
-
Less than 80 %RH.
電源供應 (Power Supply)
- DC 1.5 V battery ( UM4, AAA ) x 6 PCs, Alkaline/heavy duty type or equivalent.
電源電流 (Power Current)
- Approx. DC 20.5 mA .
體積 (Dimension)
- Main instrument : 173 x 68 x 42 mm (7.9 x 2.7x 1.2 inch)
- Probe : 177 x 29 x 17 mm
附件 (Accessories Included)
- Instruction manual..............................1 PC
- Probe....................................... 1 PC
- Hard Carrying case, CA-06...................1 PC
選購附件 (Optional Accessories)
- RS232 cable, UPCB-02
- USB cable, USB-01
- Data Acquisition software, SW-U801-WIN
|
